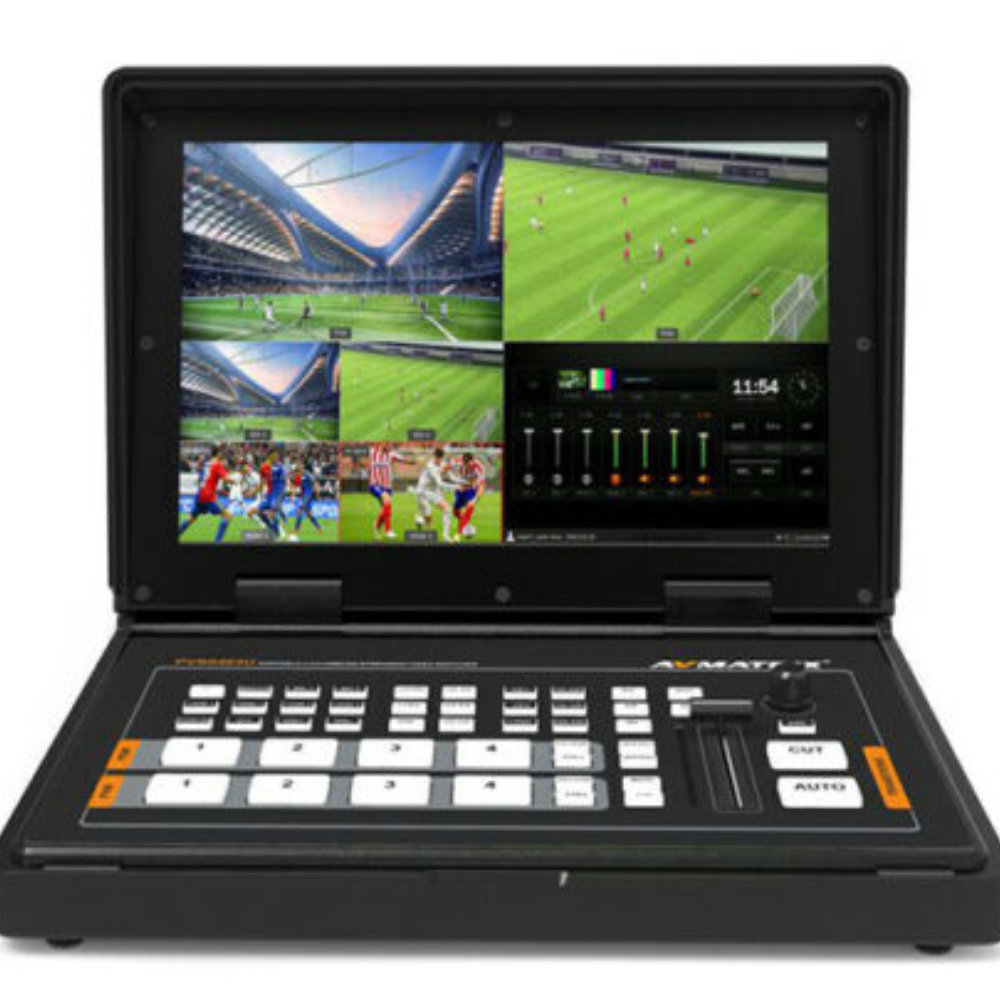

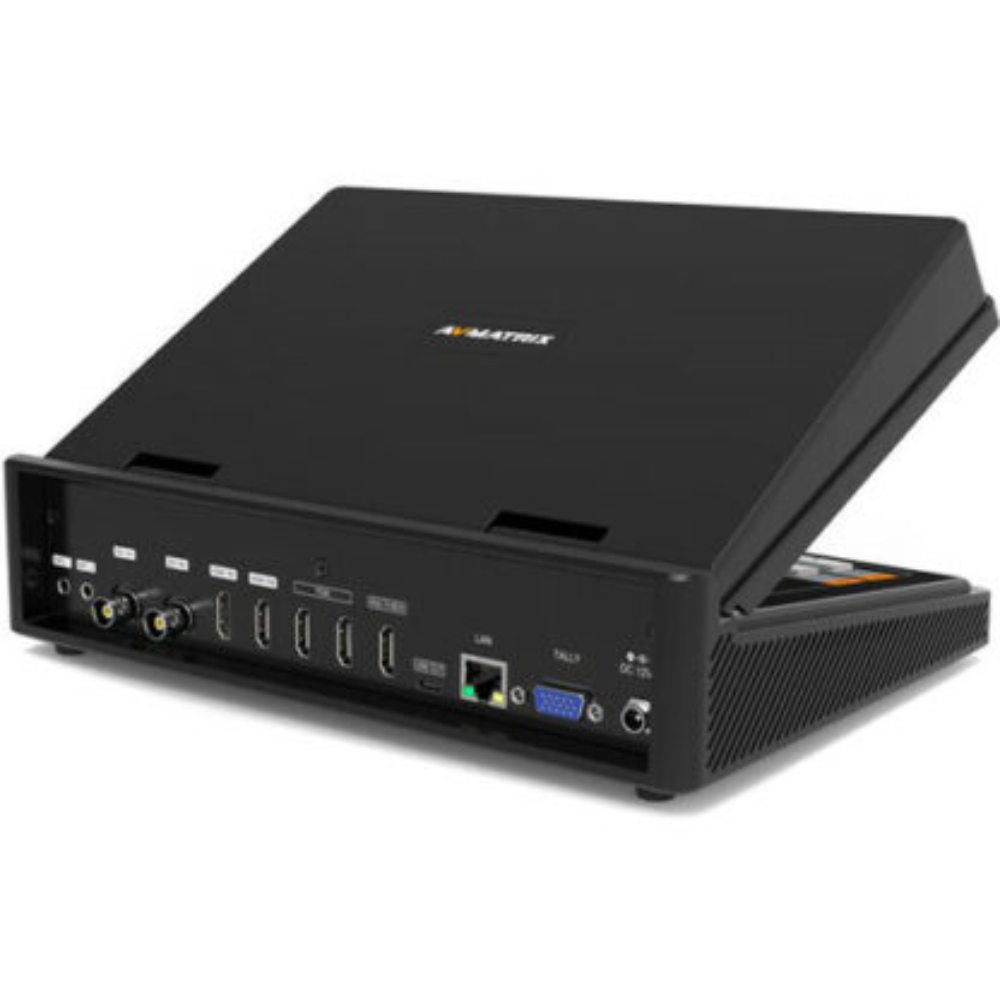

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor

Sale price ksh 88,900

In stock

SKU: 26387

Condition: Brand New

Buy Now

Need help?

Chat with our support team

Product Highlights

Integrated 10.1″ Full HD IPS LCD Monitor
2 x HDMI and 2 x SDI Autodetected Inputs
1 x HDMI Multiview, 2 x HDMI PGM Outputs
USB Type-C Output for Streaming
Supports up to 1080p60 Video I/O
Luma/Chroma Key, Mix/Fade/Wipe Effects
T-Bar, Auto, and Cut Transitions
Audio Mixing and PiP Layout
Supports PNG, JPG, and BMP Logo Overlays

Fast Shipping 24 Hrs Delivery All Over Kenya
Customer Support
Contact Support
Warranty
Warranty on All Products
Secure Payment
Pay Via Mpesa & Bank Transfer
Largest Range
Best Brands & laptops

Product details
Warranty info
Payment details
Delivery

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Overview

The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor is a professional hybrid live production switcher designed for broadcast studios, live streaming, churches, corporate events, and multi-camera productions. It combines HDMI and 3G-SDI inputs with a built-in 10.1-inch Full HD IPS display, allowing operators to monitor, switch, and stream video from a single compact unit.

With advanced features like multiview monitoring, chroma keying, audio mixing, and USB-C streaming output, it functions as an all-in-one portable production studio for professional 1080p workflows.

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Price in Kenya

Product	Price in Kenya
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor	KSh 80,000 – KSh 120,000

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Specifications

Specification	Details
Product	AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher
Type	Professional Live Production Switcher
Video Inputs	2× HDMI + 2× 3G-SDI (auto-detected)
Video Outputs	2× HDMI Program, 1× HDMI Multiview, USB-C streaming output
Display	10.1″ Full HD IPS LCD integrated monitor
Max Resolution	Up to 1080p60
Streaming Output	USB-C UVC (plug-and-play webcam output)
Audio Inputs	2× 3.5mm mic/line inputs + embedded HDMI/SDI audio
Audio Mixing	Built-in 2-channel audio mixer
Keying	Chroma key, luma key, PiP, PoP
Effects	Transitions (cut, fade, wipe), overlays, DSK support
Control	T-bar, buttons, LAN/software control
Recording	USB external storage support
Weight	Approx. 1.6 kg

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Performance

Delivers stable 1080p60 real-time switching for professional production environments
Supports mixed HDMI and SDI workflows, ideal for broadcast and hybrid camera setups
Built-in 10.1-inch IPS display provides real-time multiview monitoring and program preview
USB-C output functions as a plug-and-play webcam device for OBS, vMix, Zoom, and Teams
Supports RTMP/SRT streaming via network for direct online broadcasting
Advanced production tools including PiP, chroma key, overlays, and DSK graphics
Built-in audio mixer allows control of embedded and external microphone inputs
Reliable for long-duration live streaming in studios, churches, and events

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Design and Build

Compact all-in-one broadcast control surface with integrated display
Durable metal chassis designed for professional field and studio use
Built-in 10.1″ IPS monitor for simplified monitoring without external screens
Ergonomic layout with T-bar, shortcut buttons, and control interface
Efficient cooling system for continuous live production use
Portable enough for mobile rigs while strong enough for fixed installations

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Compatibility

Works with HDMI DSLR and mirrorless cameras
Supports SDI broadcast cameras and PTZ camera systems
Compatible with OBS Studio, vMix, Zoom, Microsoft Teams, and streaming platforms
Works with Windows and macOS via USB-C UVC output
Integrates with external audio mixers via 3.5mm inputs
Suitable for churches, broadcast studios, corporate AV, and live events

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Ideal Users

Broadcast and studio production teams
Church live streaming operators
Corporate AV and event production companies
Educational institutions and lecture halls
Content creators and YouTubers
Professional video rental and production houses

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Pros and Cons

Pros	Cons
Built-in 10.1″ multiview display	Limited to 1080p (no 4K support)
Supports both HDMI and SDI inputs	More expensive than basic switchers
USB-C plug-and-play streaming	No advanced 4K production workflow
Professional broadcast features	Slight learning curve for beginners
Integrated audio mixing and keying tools	Heavier than compact HDMI-only units

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – FAQs

1. Does the PVS0403U support live streaming?
Yes, it supports USB-C UVC streaming and network-based RTMP/SRT streaming.

2. Does it support 4K video?
No, it supports up to 1080p60 only.

3. How many inputs does it support?
It supports 4 inputs: 2 HDMI and 2 SDI sources.

4. Does it require a computer for streaming?
No, it can stream directly via USB-C or network connection.

5. Is it suitable for professional events and churches?
Yes, it is widely used in churches, broadcast studios, and live event production environments.

AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor – Conclusion

The AVMATRIX PVS0403U is a powerful all-in-one hybrid SDI/HDMI live production switcher designed for professional 1080p workflows. With its built-in 10.1-inch display, advanced switching features, and direct USB-C streaming capability, it is a reliable solution for studios, churches, and event production teams that need a compact but full-featured live production system.
