AVMATRIX PVS0615U Portable 6-Channel Switcher

Sale price ksh 190,400

In stock
Share
SKU: 57489
Condition: Brand New
Need help?

Chat with our support team

Contact us

  • 4 SDI + 2 HDMI 4K60 / 2 DVI/VGA / 2 USB
  • USB 3.0 Type-C Live Streaming Output
  • 1080p/i60 Scaled PGM SDI/HDMI Out
  • Full HD 15.6″ 6-Ch Multiview Display
  • SDI AUX Output, PGM or PVW
  • RCA L/R Audio I/O
  • Headphone Output
  • GPIO Tally
  • Metal Case
  • Luma Key / Chroma Key

  • Fast Shipping Fast Shipping 24 Hrs Delivery All Over Kenya
  • Customer Support Customer Support
    Contact Support
  • Warranty on All Products Warranty
    Warranty on All Products
  • Secure Payment Secure Payment
    Pay Via Mpesa & Bank Transfer
  • Largest Range Largest Range
    Best Brands & laptops

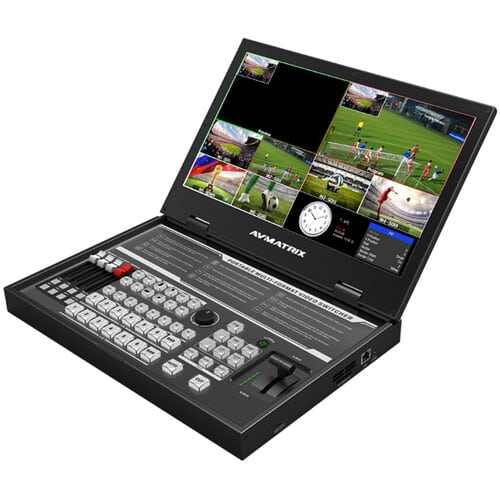

AVMATRIX PVS0615U Portable 6-Channel Switcher – Overview

The AVMATRIX PVS0615U Portable 6-Channel Switcher is a professional all-in-one broadcast production system designed for hybrid SDI, HDMI, DVI/VGA, and USB workflows. It is widely used in live streaming, sports production, church broadcasting, corporate events, education, and mobile OB setups where multiple camera formats need to be managed in a single portable unit.

It features a built-in 15.6-inch Full HD multiview display, allowing operators to monitor all sources, preview, and program output directly on the device while performing live switching, audio mixing, and streaming.

AVMATRIX PVS0615U Portable 6-Channel Switcher – Price in Kenya

Product Price in Kenya
AVMATRIX PVS0615U Portable 6-Channel Switcher KSh 190,000 – KSh 300,000

AVMATRIX PVS0615U Portable 6-Channel Switcher – Specifications

Specification Details
Product AVMATRIX PVS0615U Portable 6-Channel Switcher
Type Professional All-in-One Live Production Switcher
Video Inputs 4× 3G-SDI + 2× HDMI + (optional DVI/VGA/USB mix support)
Video Outputs 2× HDMI Program, 1× HDMI Multiview, 3× SDI outputs, USB-C streaming output
Display 15.6″ Full HD (1920×1080) integrated multiview monitor
Max Resolution Up to 1080p60 (SDI output scaled)
Streaming Output USB 3.0 Type-C (UVC/UAC plug-and-play webcam output)
Recording SD card recording up to 1080p60 H.264
Audio Inputs RCA L/R + 3.5mm + embedded HDMI/SDI audio
Audio Mixing Built-in multi-channel audio mixer
Keying Chroma key, luma key, PiP, PoP, DSK
Effects Cut, fade, wipe transitions
Control T-bar, physical buttons, LAN control
Power DC input (external adapter)
Weight Approx. 4 kg

AVMATRIX PVS0615U Portable 6-Channel Switcher – Performance

  • Delivers stable 1080p60 broadcast-quality live switching for professional production workflows
  • Supports up to 6 mixed-format inputs (SDI, HDMI, DVI/VGA, USB depending on configuration)
  • Built-in 15.6-inch display enables full multiview, preview, and program monitoring
  • USB-C output works as a plug-and-play webcam for OBS, vMix, Zoom, Teams, and YouTube Live
  • Supports direct streaming via USB and recording to SD card without external hardware
  • Advanced production tools including PiP, chroma key, overlays, and DSK graphics
  • Integrated audio mixer supports embedded and analog audio sources
  • Designed for continuous use in broadcast, live events, and mobile production environments

AVMATRIX PVS0615U Portable 6-Channel Switcher – Design and Build

  • All-in-one broadcast console with integrated 15.6″ monitor
  • Rugged metal chassis built for field and studio deployment
  • Full control surface with T-bar and dedicated switching buttons
  • Integrated screen reduces need for external monitors
  • Designed for OB vans, portable rigs, and permanent installations
  • Built for long-duration professional live production use

AVMATRIX PVS0615U Portable 6-Channel Switcher – Compatibility

  • Works with HDMI DSLR and mirrorless cameras
  • Supports SDI broadcast cameras and PTZ systems
  • Compatible with OBS Studio, vMix, Zoom, Microsoft Teams, and streaming platforms
  • Works with Windows, macOS, and Linux via USB-C UVC output
  • Integrates with external audio mixers via analog inputs
  • Suitable for churches, broadcast studios, corporate AV, and live event production

AVMATRIX PVS0615U Portable 6-Channel Switcher – Ideal Users

  • Broadcast production teams
  • Live streaming studios
  • Church production teams
  • Corporate AV and event production companies
  • Sports production crews
  • Educational institutions and training centers

AVMATRIX PVS0615U Portable 6-Channel Switcher – Pros and Cons

Pros Cons
Built-in 15.6″ multiview display Expensive compared to compact switchers
Supports multiple formats (SDI/HDMI/DVI/VGA/USB) Limited to 1080p (no 4K support)
Full broadcast-style control surface Heavy and less portable than smaller units
USB-C plug-and-play streaming Complex setup for beginners
SD card recording support Requires proper configuration for multi-format inputs

AVMATRIX PVS0615U Portable 6-Channel Switcher – FAQs

1. Does the PVS0615U support live streaming?
Yes, it supports USB-C UVC streaming and can stream via a connected computer using OBS or similar software.

2. Can it operate without a computer?
Yes, it supports standalone switching and SD card recording, and can stream via USB directly.

3. How many inputs does it support?
It supports up to 6 inputs, including SDI, HDMI, and optional DVI/VGA/USB combinations.

4. Does it support 4K video?
It can accept some 4K HDMI inputs, but output and processing are limited to 1080p60.

5. Is it suitable for professional broadcast use?
Yes, it is widely used in broadcast, sports, churches, and mobile production environments.

AVMATRIX PVS0615U Portable 6-Channel Switcher – Conclusion

The AVMATRIX PVS0615U is a high-end portable live production switcher designed for complex multi-camera workflows. With its 15.6-inch integrated display, hybrid input flexibility, advanced switching tools, and direct streaming/recording capabilities, it is a powerful all-in-one solution for professional broadcast, live events, and studio production environments.
