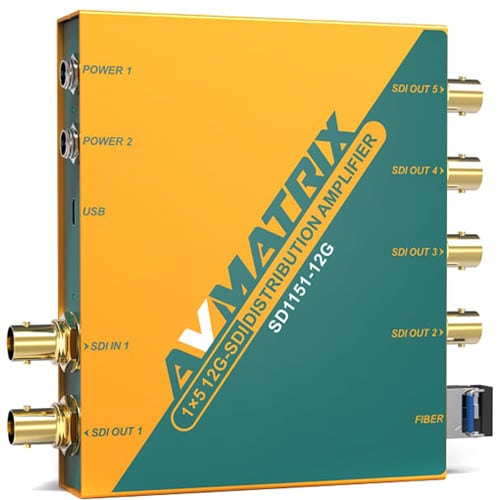

AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier
Sale price ksh 23,300
Need help?
Chat with our support team
- 1 x 12G/6G/3G/HD/SD-SDI BNC Input
- 5 x 12G/6G/3G/HD/SD-SDI Outputs
- Reclocked and Equalized Outputs
- 1 x Slot for Optional SFP Fiber Module
- Redundant, Locking Power Inputs
- DVB-ASI Signal Support
- Ancillary Data Passthrough
- 1 x 5V Power Supply Included
-
Fast Shipping
24 Hrs Delivery All Over Kenya
-
Customer Support
Contact Support -
Warranty
Warranty on All Products -
Secure Payment
Pay Via Mpesa & Bank Transfer -
Largest Range
Best Brands & laptops
AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier – Overview
The AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier is a professional broadcast-grade signal distribution unit designed to split a single SDI input into five identical outputs. It is widely used in broadcast studios, live production environments, OB vans, sports production, and church AV systems where a stable long-distance SDI distribution is required.
It supports 12G-SDI (up to 4K60), 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI, and includes reclocking and equalization, ensuring clean signal regeneration for long cable runs and multi-device distribution.
AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier – Price in Kenya
| Product | Price in Kenya |
|---|---|
| AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier | KSh 35,000 – KSh 55,000 |
AVMATRIX SD1151-12G 12G-SDI 1×5 Reclocking Distribution Amplifier – Specifications
| Specification | Details |
|---|---|
| Product | AVMATRIX SD1151-12G 12G-SDI 1×5 DA |
| Type | Reclocking SDI Distribution Amplifier |
| Input | 1× 12G/6G/3G/HD/SD-SDI (BNC) |
| Outputs | 5× 12G/6G/3G/HD/SD-SDI (BNC) |
| Max Resolution | Up to 4K60 (12G-SDI) |
| Signal Processing | Reclocking, equalization, signal regeneration |
| SDI Standards | SMPTE 259M / 292M / 424M / ST-2082 |
| Audio Support | Embedded SDI audio passthrough |
| Additional Port | Optional SFP fiber module slot (output) |
| Power Input | Dual redundant locking DC/USB power inputs |
| Power Consumption | Very low (~1–2W) |
| Build | Compact metal housing |
| Operating Range | Broadcast-grade continuous operation |
AVMATRIX SD1151-12G – Performance
- Splits one SDI source into five identical broadcast-quality outputs
- Supports 12G-SDI for full 4K60 signal distribution without degradation
- Built-in reclocking restores and stabilizes weakened or long-distance SDI signals
- Equalization ensures consistent signal quality across all outputs
- Supports multi-rate SDI compatibility (SD, HD, 3G, 6G, 12G)
- Maintains low jitter and high signal integrity for professional workflows
- Suitable for 24/7 continuous broadcast operation
- Optional SFP port allows fiber extension for long-distance transmission
AVMATRIX SD1151-12G – Design and Build
- Rugged compact metal chassis designed for broadcast environments
- Lightweight but durable for rack or portable production setups
- Dual power inputs for redundancy and fail-safe operation
- LED indicators for signal lock and power status monitoring
- Designed for rack mounting or fixed installation in AV systems
- Engineered for low heat and long-term reliability
AVMATRIX SD1151-12G – Compatibility
- Works with SDI broadcast cameras (12G/6G/3G/HD/SD)
- Compatible with Blackmagic, AJA, Sony, Canon SDI workflows
- Integrates with video switchers, recorders, and monitors
- Suitable for OBS/vMix workflows via capture devices
- Works in OB vans, broadcast studios, and live event rigs
- Compatible with SMPTE-standard SDI infrastructure
AVMATRIX SD1151-12G – Ideal Users
- Broadcast television studios
- Live sports production teams
- Church AV and streaming departments
- Corporate event production companies
- OB van operators
- Professional video engineers
AVMATRIX SD1151-12G – Pros and Cons
| Pros | Cons |
|---|---|
| 12G-SDI support up to 4K60 | No HDMI support (SDI-only device) |
| 1 input → 5 output distribution | No scaling or format conversion |
| Reclocking improves long cable reliability | Requires SDI-based workflow |
| Redundant power inputs | Limited to distribution function only |
| Broadcast-grade signal stability | No built-in monitoring or display |
AVMATRIX SD1151-12G – FAQs
1. What does the SD1151-12G do?
It splits one SDI signal into five identical outputs while stabilizing the signal using reclocking.
2. Does it support 4K video?
Yes, it supports 12G-SDI up to 4K60.
3. Can it convert HDMI to SDI?
No, it is SDI distribution only.
4. What is reclocking?
Reclocking regenerates the SDI signal to reduce jitter and improve long-distance stability.
5. Is it suitable for professional broadcast use?
Yes, it is widely used in broadcast, live production, and studio environments.
AVMATRIX SD1151-12G – Conclusion
The AVMATRIX SD1151-12G is a reliable broadcast-grade SDI distribution amplifier designed for professional video workflows. With 12G-SDI support, reclocking technology, and five buffered outputs, it ensures stable, high-quality signal distribution for multi-camera production, making it ideal for studios, OB vans, and live broadcast environments.
