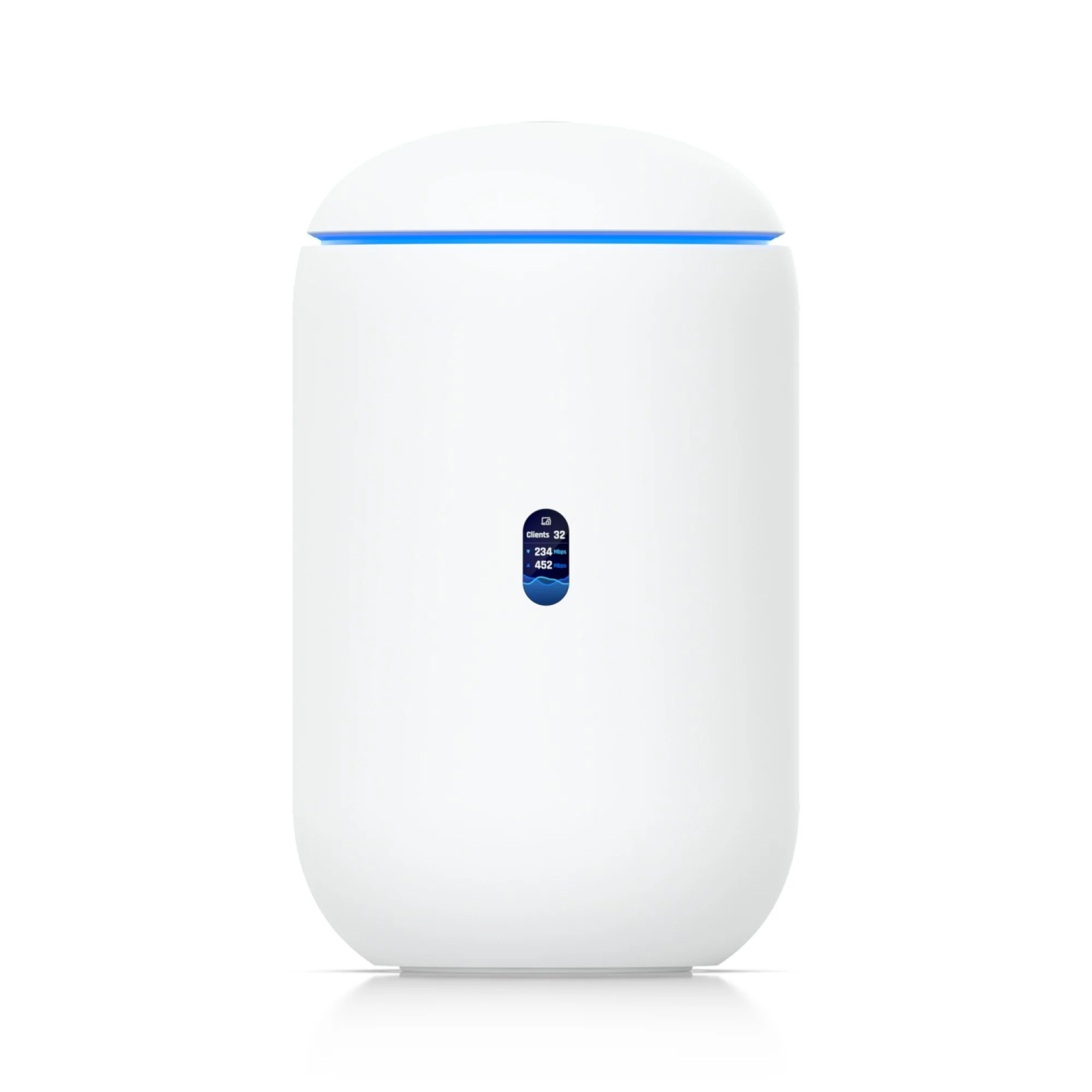

Ubiquiti UniFi Dream Router 7-UDR 7

Ubiquiti UniFi Dream Router 7-UDR 7 Overview

The Ubiquiti UniFi Dream Router 7-UDR 7 is an all-in-one UniFi Cloud Gateway that combines high-speed routing, network security, WiFi 7, switching, PoE, storage, and centralized UniFi application management in a compact desktop appliance.

The UDR7 is designed for users who want to build a modern UniFi network without purchasing separate devices for the gateway, wireless access point, basic switching, and UniFi management functions. Ubiquiti specifies support for 30+ managed UniFi devices and 300+ simultaneous connected users, making it suitable for advanced home networks, offices, retail environments, and small-to-medium-sized deployments.

The router provides a 10G SFP+ port and four 2.5GbE RJ45 ports, with one RJ45 port supporting PoE. It also provides up to 2.3Gbps IDS/IPS throughput, making it suitable for high-speed Internet connections where security inspection is required.

Ubiquiti UniFi Dream Router 7-UDR 7 Price in Kenya

Ubiquiti UniFi Dream Router 7-UDR 7 Specifications

These specifications are based on Ubiquiti's current UDR7 technical specifications.

Ubiquiti UniFi Dream Router 7-UDR 7 WiFi 7 Performance

The integrated WiFi 7 capability is one of the major features of the UDR7. It provides wireless connectivity across the 2.4GHz, 5GHz, and 6GHz bands, allowing compatible client devices to take advantage of newer WiFi standards.

• WiFi 7 support.

• 2.4GHz wireless connectivity.

• 5GHz wireless connectivity.

• 6GHz wireless connectivity.

• 2 × 2 MU-MIMO radios.

• Up to 5.7Gbps throughput on 6GHz.

• Up to 4.3Gbps throughput on 5GHz.

• Up to 688Mbps throughput on 2.4GHz.

• WPA, WPA2 and WPA3 security support.

• Suitable for modern laptops and smartphones.

• Suitable for WiFi 7 client devices.

• Backward compatibility with earlier WiFi standards.

Ubiquiti lists supported 802.11be WiFi 7 data rates up to 5.7Gbps on the 6GHz radio, while the 5GHz and 2.4GHz radios provide up to 4.3Gbps and 688Mbps respectively under the stated specifications.

Ubiquiti UniFi Dream Router 7-UDR 7 Connectivity and compatibility

The UDR7 provides high-speed wired connectivity alongside its integrated wireless capabilities.

• 4 × 2.5GbE RJ45 ports.

• 1 × 10G SFP+ port.

• 1 PoE-enabled 2.5GbE port.

• Suitable for UniFi switches.

• Suitable for compatible UniFi access points.

• Suitable for wired computers.

• Suitable for network printers.

• Suitable for compatible surveillance equipment.

• Suitable for high-speed network storage.

• Suitable for multi-gigabit network infrastructure.

The combination of 2.5GbE and 10G SFP+ connectivity makes the UDR7 suitable for networks that require more bandwidth than conventional Gigabit Ethernet can provide.

Ubiquiti UniFi Dream Router 7-UDR 7 Network Performance

The UDR7 combines gateway routing and security processing in the same appliance.

• Up to 2.3Gbps IDS/IPS throughput.

• Multi-WAN load balancing.

• Advanced QoS.

• Dynamic routing with OSPF.

• Advanced NAT.

• Policy-based WAN routing.

• Policy-based VPN routing.

• Customizable DHCP.

• IPv6 ISP support.

• IGMP proxy.

• Multicast DNS.

• Integrated RADIUS server.

• Internet quality and outage reporting.

These capabilities make it suitable for networks with multiple users, multiple VLANs, high-speed Internet connections, and more advanced traffic-management requirements.

Ubiquiti UniFi Dream Router 7-UDR 7 Firewall and security

The UDR7 provides multiple layers of network-security functionality for controlling and monitoring network traffic.

• Stateful firewall.

• Application-aware Layer 7 firewall.

• Deep packet inspection.

• Traffic identification.

• Zone-based firewall filtering.

• Content filtering.

• Intrusion prevention.

• Intrusion detection.

• Ad blocking.

• VLAN-based segmentation.

• Subnet-based segmentation.

• Guest traffic isolation.

• Advanced security policies.

Ubiquiti lists more than 20,000 IDS/IPS signatures with CyberSecure, along with application-aware and zone-based firewall capabilities.

Ubiquiti UniFi Dream Router 7-UDR 7 VPN and remote connectivity

The UDR7 supports several VPN technologies for secure remote access and communication between locations.

• WireGuard VPN.

• OpenVPN server.

• OpenVPN client.

• IPsec.

• Site-to-site VPN.

• Site Magic.

• Teleport zero-configuration VPN.

• Identity Endpoint one-click VPN.

• Policy-based VPN routing.

• Remote-user connectivity.

• Branch-office connectivity.

These features make the router suitable for businesses with remote employees, multiple offices, or users who need secure access to network resources while away from the local network.

Ubiquiti UniFi Dream Router 7-UDR 7 UniFi application support

The UDR7 supports the broader UniFi application ecosystem, allowing it to serve as more than a conventional router.

• UniFi Network for network management.

• UniFi Protect for compatible surveillance systems.

• UniFi Access for access-control deployments.

• UniFi Talk for supported communication systems.

• UniFi Connect for supported connected devices.

This integration allows multiple UniFi functions to be managed from one centralized appliance.

Ubiquiti UniFi Dream Router 7-UDR 7 Storage and NVR

The UDR7 includes a pre-installed 64GB microSD card for NVR storage and provides a microSD expansion slot.

• 64GB microSD storage included.

• MicroSD expansion capability.

• Suitable for compatible NVR functions.

• Supports UniFi Protect.

• Useful for surveillance recordings.

• Local storage for supported UniFi applications.

• Helps consolidate network and surveillance functions.

Ubiquiti lists camera-management capacity of 5 HD, 2 2K, and 1 4K camera for the UDR7. Actual recording capacity depends on camera configuration, recording settings, and storage requirements.

Ubiquiti UniFi Dream Router 7-UDR 7 PoE capability

One of the four 2.5GbE RJ45 ports provides PoE functionality.

• 15.4W PoE budget.

• 15.4W maximum PoE output per supported port.

• Suitable for compatible UniFi devices.

• Useful for powering a compatible access point.

• Reduces the need for a separate power adapter.

• Simplifies deployment of supported PoE equipment.

The total PoE capability is limited by the specified 15.4W budget, so connected devices should be checked against their power requirements.

Ubiquiti UniFi Dream Router 7-UDR 7 Design and build

The UDR7 uses a compact desktop design that combines several networking functions into a single enclosure.

• Compact desktop form factor.

• Polycarbonate enclosure.

• Approximately 1.1kg weight.

• 0.96-inch status display.

• Integrated internal power supply.

• Suitable for desktop installation.

• Suitable for office environments.

• Suitable for home networks.

• Useful for retail and professional installations.

• Designed for space-conscious network deployments.

The compact design makes the UDR7 suitable for users who want advanced UniFi functionality without deploying a full-size rack-mounted gateway.

Ubiquiti UniFi Dream Router 7-UDR 7 Ideal Use Cases

• Small businesses

• Medium-sized businesses

• Professional offices

• Home offices

• Advanced home networks

• Retail shops

• Schools

• Branch offices

• UniFi WiFi 7 deployments

• Multi-gigabit networks

• Guest networks

• IoT networks

• VPN networks

• Small surveillance deployments

• UniFi Protect installations

Ubiquiti UniFi Dream Router 7-UDR 7 FAQs

1. What is the Ubiquiti UniFi Dream Router 7?

The UDR7 is an all-in-one UniFi Cloud Gateway with integrated WiFi 7, multi-gigabit Ethernet, switching, PoE, firewall, VPN, storage, and UniFi application support.

2. Does the UDR7 support WiFi 7?

Yes. It supports WiFi 7 across the 2.4GHz, 5GHz, and 6GHz bands.

3. How fast is the UDR7's wired connectivity?

It provides four 2.5GbE RJ45 ports and one 10G SFP+ port. One of the 2.5GbE ports also supports PoE.

4. What is the UDR7's IDS/IPS throughput?

Ubiquiti specifies up to 2.3Gbps IDS/IPS throughput.

5. How many UniFi devices can it manage?

The UDR7 supports 30+ managed UniFi devices and 300+ simultaneous connected users.

6. Does the UDR7 support UniFi Protect?

Yes. It supports UniFi Protect and includes 64GB microSD storage for NVR functions.

7. Does the UDR7 have PoE?

Yes. One 2.5GbE RJ45 port provides PoE with a total PoE budget of 15.4W.

8. Is the UDR7 suitable for a small business?

Yes. Its WiFi 7, multi-gigabit ports, firewall, VPN, VLAN segmentation, UniFi management, and support for 300+ clients make it suitable for many small and medium-sized business deployments.

Ubiquiti UniFi Dream Router 7-UDR 7 Pros and Cons

Ubiquiti UniFi Dream Router 7-UDR 7 Conclusion

The Ubiquiti UniFi Dream Router 7-UDR 7 is a powerful all-in-one networking platform that combines WiFi 7, 10G SFP+, 2.5GbE networking, PoE, advanced routing, firewall security, VPN functionality, UniFi management, and NVR storage in one compact device.

With support for 30+ UniFi devices, 300+ connected users, 2.3Gbps IDS/IPS throughput, and tri-band WiFi 7, it is a strong choice for modern homes, professional offices, small businesses, retail environments, branch locations, and other networks that need an integrated UniFi solution.
