AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher
Sale price ksh 164,200
Need help?
Chat with our support team
- 6-Channel Workflow with 1080p Scaling
- 4 x 1080p60 SDI & 2 x 4K60 HDMI Inputs
- 2 x DVI-I (VGA) & 2 x USB-A Inputs
- USB-C Uncompressed 1080p60 Streaming
- 3 x PGM & 2 x Multiview SDI/HDMI Outputs
- 9-Way Multiview with Clock & Data
- 6-Channel Audio Mixer
- XLR/RCA & SDI/HDMI/USB Embedded Audio
- RS-422/485 Joystick VISCA/Pelco-D/P PTZ
- Tally Port; 1080p60 SD Card Recording
-
Fast Shipping
24 Hrs Delivery All Over Kenya
-
Customer Support
Contact Support -
Warranty
Warranty on All Products -
Secure Payment
Pay Via Mpesa & Bank Transfer -
Largest Range
Best Brands & laptops
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Overview
The AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher is a professional desktop broadcast switcher designed for advanced live production environments. It supports a hybrid 6-channel workflow combining SDI, HDMI, DVI, and USB media inputs, making it suitable for broadcast studios, live streaming, sports production, churches, corporate events, and education setups.
It is built for high-flexibility 1080p60 production workflows, offering multiview monitoring, professional audio mixing, recording support, and direct USB-C streaming output.
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Price in Kenya
| Product | Price in Kenya |
|---|---|
| AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher | KSh 150,000 – KSh 220,000 |
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Specifications
| Specification | Details |
|---|---|
| Product | AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Switcher |
| Type | Professional Live Production Switcher |
| Video Inputs | 4× 3G-SDI + 2× HDMI + DVI-I + USB-A media inputs |
| Video Outputs | SDI/HDMI Program, SDI/HDMI Multiview, SDI AUX, USB-C output |
| Max Resolution | Up to 1080p60 (all sources scaled) |
| Streaming Output | USB-C UVC/UAC (plug-and-play webcam output) |
| Network Streaming | RTMP via Ethernet |
| Audio Inputs | 2× XLR + 2× RCA + embedded HDMI/SDI audio |
| Audio Mixing | Multi-channel professional audio mixer with AFV |
| Keying | Chroma key, luma key, PiP, PoP, DSK |
| Effects | Cut, mix, fade, wipe transitions |
| Recording | H.264 recording to SD card |
| Control | T-bar, buttons, LAN/IP control |
| PTZ Control | VISCA, Pelco-D/P via RS-422/485 |
| Weight | Approx. 2–3 kg |
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Performance
- Delivers stable 1080p60 broadcast-grade live switching for professional production workflows
- Supports 6-channel hybrid inputs including SDI, HDMI, DVI, and USB media sources
- Provides real-time monitoring with advanced multiview display layouts (up to 9-window view)
- USB-C output functions as a plug-and-play webcam device for OBS, vMix, Zoom, and Teams
- Supports RTMP streaming via Ethernet for direct online broadcasting without external encoders
- Built-in audio mixer supports XLR, RCA, and embedded digital audio sources
- Advanced production tools including PiP, chroma key, overlays, and DSK graphics
- Supports PTZ camera control via VISCA and Pelco protocols
- Reliable for long-duration use in broadcast, church, sports, and studio environments

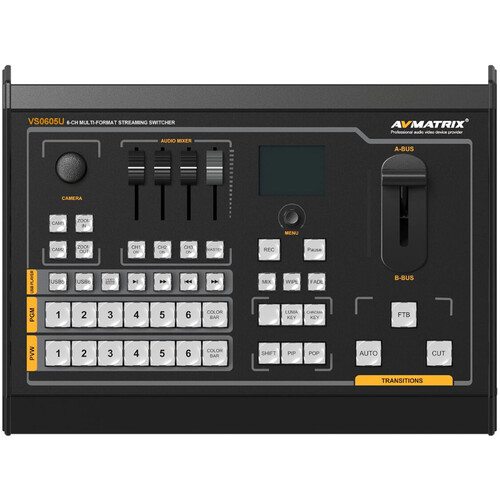

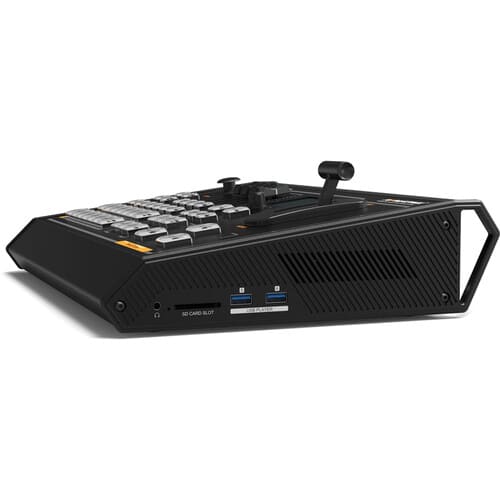

AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Design and Build
- Rugged metal chassis built for broadcast and field production
- Professional control surface with T-bar and dedicated source buttons
- Integrated multiview monitoring support (external display required)
- Efficient cooling system for continuous live operation
- Designed for OB vans, studio racks, and mobile production kits
- Durable build suitable for high-frequency professional use
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Compatibility
- Works with HDMI DSLR and mirrorless cameras
- Supports SDI broadcast cameras and PTZ systems
- Compatible with OBS Studio, vMix, Zoom, Microsoft Teams, and streaming platforms
- Works on Windows, macOS, and Linux via USB-C UVC output
- Integrates with external audio mixers via XLR/RCA inputs
- Suitable for churches, broadcast studios, corporate AV, and live event production
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Ideal Users
- Broadcast production teams
- Live streaming studios
- Church production teams
- Corporate AV and event production companies
- Sports and conference production crews
- Educational institutions and training centers
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Pros and Cons
| Pros | Cons |
|---|---|
| Extremely flexible 6-channel hybrid input system | No built-in screen (external monitoring required) |
| Supports SDI, HDMI, DVI, and USB sources | Higher complexity for beginners |
| Professional broadcast-grade audio mixer | No 4K switching (1080p max output) |
| Advanced PTZ and keying features | Larger and heavier than compact switchers |
| Strong multiview and control options | More expensive than entry-level switchers |
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – FAQs
1. Does the VS0605U support live streaming?
Yes, it supports USB-C UVC streaming and RTMP streaming via Ethernet.
2. Can it work without a computer?
Yes, it can operate standalone for switching, recording, and network streaming.
3. How many inputs does it support?
It supports up to 6 inputs including SDI, HDMI, DVI, and USB sources.
4. Does it support 4K video?
It accepts some 4K HDMI inputs but processes and outputs up to 1080p60.
5. Is it suitable for professional broadcast environments?
Yes, it is widely used in broadcast studios, churches, sports, and live event production.
AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher – Conclusion
The AVMATRIX VS0605U is a powerful and highly flexible professional switcher designed for advanced multi-camera production workflows. With hybrid input support, broadcast-grade audio mixing, PTZ control, and robust streaming capabilities, it is an excellent solution for studios, churches, and production teams that require a reliable 1080p multi-format live production system.
