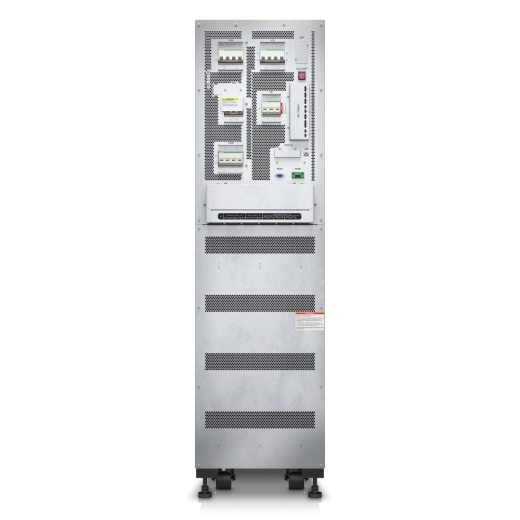

Easy UPS 3S 20 kVA 400 V 3:3 UPS with internal batteries - 15 minutes runtime (E3SUPS20KHB1)

Product: In Stock
  • Product SKU: 79258
  • Product Condition: Brand New

ksh 1,000,000 Ksh 1,100,000

Buy Now
  • Fast Shipping
  • Fast Shipping
    24 Hrs Delivery All Over Kenya
  • Warranty on All Products
  • Warranty
    Warranty on All Products
  • Secure Payment
  • Secure Payment
    Pay Via Mpesa & Bank Transfer
  • Largest Range
  • Largest Range
    Best Brands & laptops
Easy UPS 3S 20 kVA 400 V 3:3 UPS with internal batteries - 15 minutes runtime (E3SUPS20KHB1)

Output power capacity - 20.0kWatts / 20.0kVA
Nominal Output Voltage - 400V 3PH
Nominal Input Voltage - 400V 3PH
Maximum Input Current - 37.0A


Easy UPS 3S 20 kVA 400 V 3:3 UPS with internal batteries - 15 minutes runtime
High-efficiency 3-phase UPS with internal batteries providing a runtime of 15 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide

Easy UPS 3S Features & Benefits
Protection
Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS
Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!
Replaceable dust filtersprotect the UPS in harsh environments.

show more

Output
Max Configurable Power (Watts)20.0kWatts / 20.0kVA
Output Voltage DistortionLess than 3 %
Output Frequency (sync to mains)50 Hz Sync to mains, 60 Hz Sync to mains
Other Output Voltages380 V, 415 V
TopologyDouble conversion online
Output Voltage THD< 3% linear load
Output Voltage Tolerance+/- 1.5 %
Input
Input frequency45 - 65 Hz
Input voltage range for main operations304 - 477V
Input Total Harmonic DistortionLess than 3 % for full load
Other Input Voltages380 V, 415 V
Input Power Factor at Full Load0.99
Batteries & Runtime
Battery typeVRLA
Included Battery Modules2
Nominal Battery Voltage240 V
Battery Slots Empty1
Replacement battery cartridge noteUPS weight does not include battery weight.
Maximum Available Short Circuit Current10kAmps
EfficiencyView Efficiency Graph
Communications & Management
Interface Port(s)E3S_Parallel, E3S_TempSensor

Easy UPS 3S Features & Benefits
Protection
Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS
Wide Input Voltage Window-Saves your battery power for when you really need it - during power cuts!
Replaceable dust filtersprotect the UPS in harsh environments.
Convenience
ECO Mode-Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy to install fastQuickly roll the compact and lightweight UPS into position.
Straightforward installationIncluding the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Front-access servicing-Simplifies installation and UPS maintenance while minimizing space requirements.
Intuitive user interface-The intuitive graphical user interface allows for easy system configuration.
Easy Loop TestVerifies UPS performance before you connect your load, without the need for a load bank.
