The Comprehensive Guide to Networking Cables: Types, Uses, and Best Practices
Networking cables are the backbone of any network, enabling communication between devices and facilitating data transfer. Understanding the various types of networking cables, their uses, and best practices can help you make informed decisions for your network infrastructure. In this guide, we’ll cover everything you need to know about networking cables.
What Are Networking Cables?
Networking cables are physical wires that connect computers, routers, switches, and other devices within a network. They transmit data in the form of electrical signals or light pulses, enabling devices to communicate with each other. The choice of cable affects the speed, distance, and reliability of the network.
Types of Networking Cables
1. Ethernet Cables (Twisted Pair)
Ethernet cables are the most common type of networking cable. They consist of twisted pairs of wires that help reduce electromagnetic interference.
Cat5e: Supports speeds up to 1 Gbps over distances up to 100 meters. Ideal for basic networking needs.

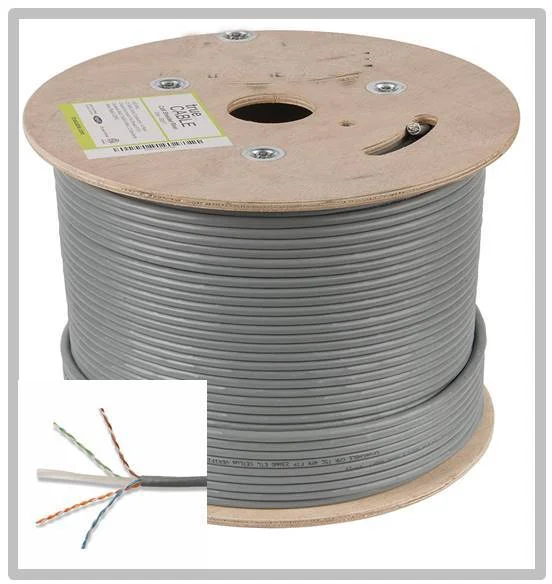

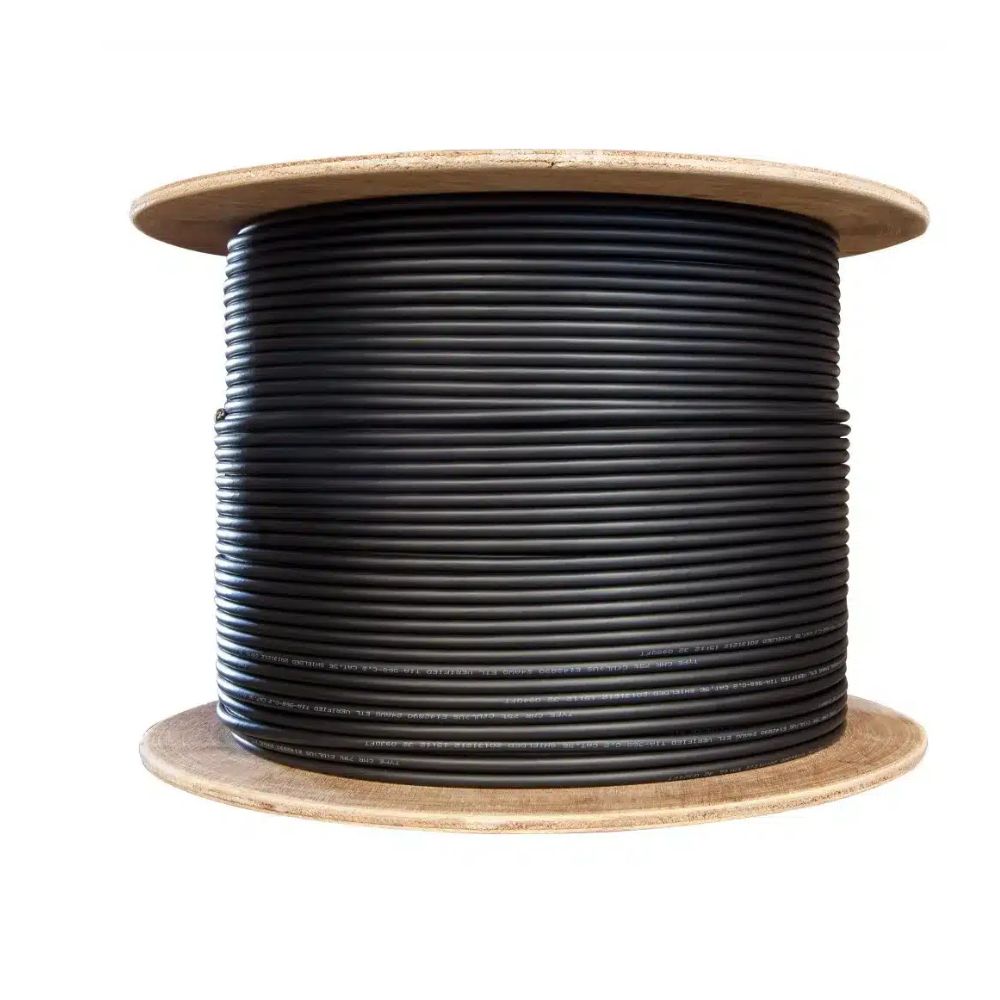

Cat6: Supports speeds up to 10 Gbps over distances up to 55 meters. Suitable for higher bandwidth applications.
Cat6a: An enhanced version of Cat6, it supports speeds up to 10 Gbps over longer distances (up to 100 meters).

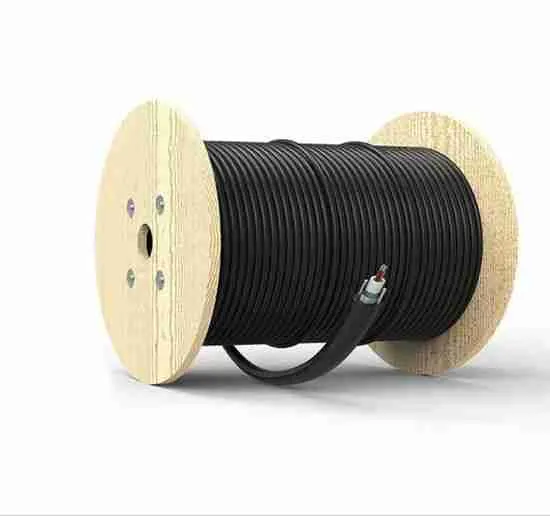

2. Fiber Optic Cables
Fiber optic cables use light to transmit data, offering higher speeds and longer distances compared to copper cables. They are less susceptible to interference and are ideal for high-performance networks.

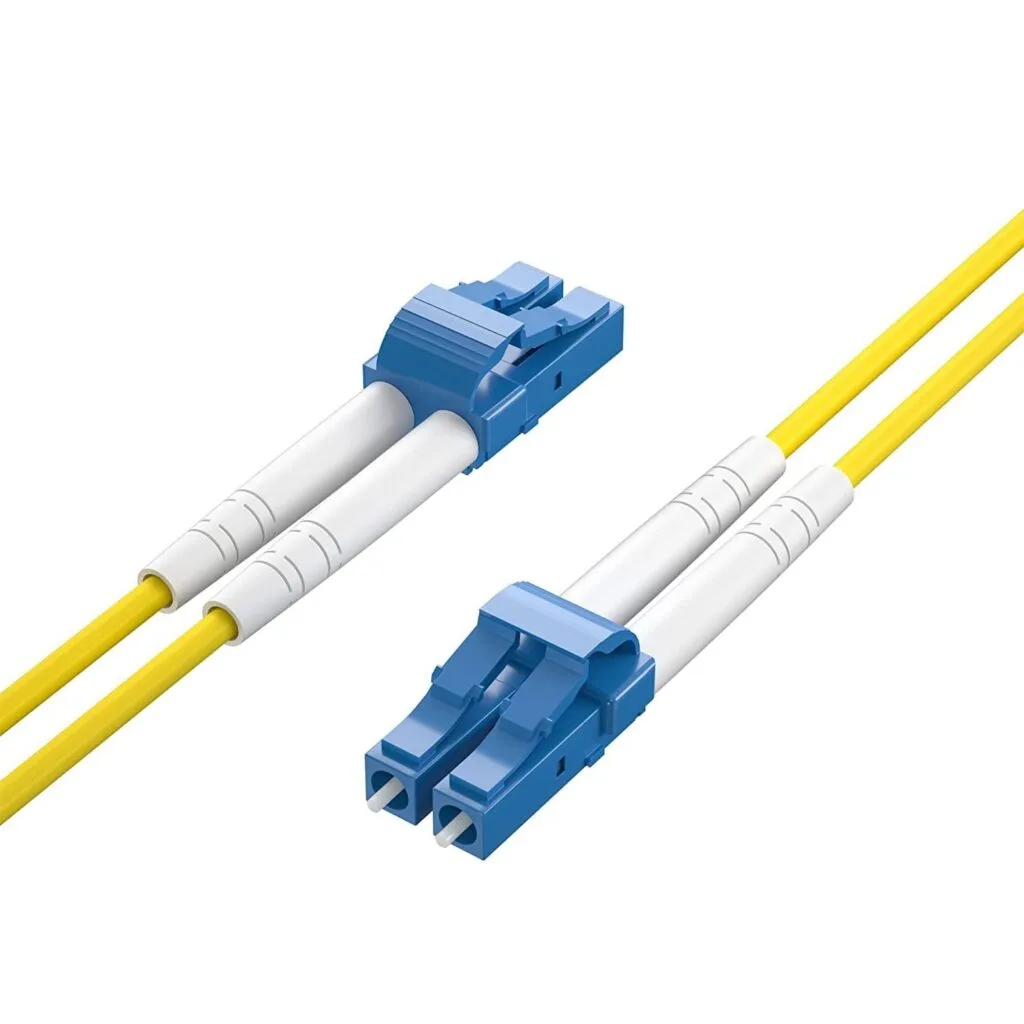

Single-Mode Fiber (SMF): Designed for long-distance transmission, SMF cables have a smaller core and can transmit data over several kilometers.
Multi-Mode Fiber (MMF): Used for shorter distances, MMF cables have a larger core and are typically used within buildings.
3. Coaxial Cables
Coaxial cables consist of a central conductor, an insulating layer, a metallic shield, and an outer cover. They are commonly used for cable television and internet connections. While not as common for networking as twisted pair and fiber optic cables, they can still be found in certain applications.
Applications of Networking Cables
Local Area Networks (LANs): Ethernet cables are widely used in LAN setups, connecting computers, printers, and servers within an office.
Data Centers: Fiber optic cables are preferred for data centers due to their high speed and bandwidth capabilities, allowing for efficient data transmission.
Telecommunications: Coaxial cables are often used in telecommunications networks for delivering cable services.
Best Practices for Installing and Maintaining Networking Cables
1. Plan Your Layout
Before installation, plan your network layout carefully. Consider the locations of devices, cable lengths, and potential obstacles. Proper planning can save time and reduce unnecessary costs.
2. Use Quality Cables
Invest in high-quality networking cables that meet the necessary standards for your applications. Cheaper cables may save money initially but can lead to performance issues and costly replacements down the line.
3. Avoid Over-Bending
Networking cables can be damaged if bent too sharply. Follow the manufacturer's specifications for bend radius to prevent signal loss or cable failure.
4. Label Cables
Labeling cables can save time during troubleshooting or upgrades. Clear labels help identify the function and destination of each cable in your network.
5. Regular Maintenance Checks
Perform regular checks to ensure that cables are in good condition and connections are secure. Look for signs of wear, fraying, or damage, and replace any compromised cables promptly.
Conclusion
Understanding networking cables is crucial for establishing a reliable and efficient network. With various types available, including Ethernet, fiber optic, and coaxial cables, choosing the right one for your specific needs is essential. By following best practices during installation and maintenance, you can ensure optimal performance and longevity for your networking infrastructure.
Investing in quality networking cables and proper maintenance will lead to a robust network capable of supporting your organization’s growing demands. With this comprehensive guide, you're well-equipped to make informed decisions about your networking cables and enhance your connectivity experience.
